Narrow Seamless Bezel 46 55 Inch Wall Mounted DID LCD Video Walls Support 1080P Digital Signage
Features:
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.
Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
Stable performance,suitable working for a long time
Key specification:
LCD size: 46"
LCD supplier: LG display company limited
Brightness: 500 nits
Resolutions: 1920 x 1080/60Hz
Refresh time: 12ms
Pixel pitch: 0.53025×0.53025(mm)
Viewing angle (H/V): 178/178°
Input voltage: 100-240V/50-60Hz
Storage temperature(-20℃~65℃)

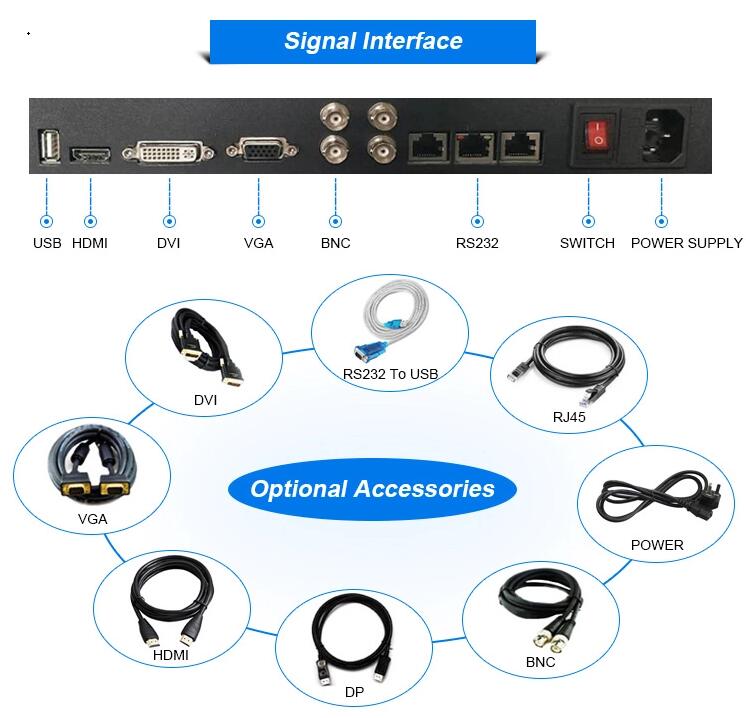

Input interface:
HDMI x 1
DVI x 1
VGA x 1
Y PB PR (BNC) x 1
S-video (BNC) x 1
Video (BNC) x 4
Audio (RCA) x 1
USB x 2
Shell material: Work automatically according to the set temperature and actual temperature of the machine, control the fan operation, reduce noise, sectionFull metal jacket, anti-static, magnetic field, the strong electric field disturbance
About energy consumption, improve the stability and reliability of the LCD splicing unit
Application:
The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public
Technical Parameter:
| parameters |
| Item | 46"DID |
| Physical resolution | 1920*1080(H×V) |
| brightness | 500(cd/m² ) |
| contrast | 3000:1 |
| View angel | 178°(H) / 178°(V) |
| Screen ratio | 16:9 |
| Motion compensation technology | AUTO MOVE |
| Filter | 3D comb filtering DNR |
| Video starnard | PAL,NTSC |
| Composite video input | CVBS(BNC) ×1； |
| Composite video output | CVBS(BNC) ×1； |
| Digital signal input | HDMI×1； 1920*1080@60Hz downward compatibility |
| Computer signal input | VGA(DB-6) ×1；1920*1080@60Hz upword compatibility |
| Digitalsignal input | DVI(DVI-I)×1；1080P(1920*1080) downward compatibility |
| Computer centralized interface | RS232 |
| Mode of operation | Computer centralized control |
| The average time between failures | 60000 hours |
| Wide voltage design | 100-240v |
| Power consumption | 230w |
| The frame size | 3.5mm |
| External dimension | 1021.98mm×576.57mm×71.7mm(W×H×D) |
| The display area size | 1018.8mm×572.87 mm (W×H) |
| Hole site installation | 580×200(mm)(L×W) |
