Narrow Bezel LCD Video Wall Panels 55 Inch 170 Degree Viewing Angle

Name: Narrow Bezel LCD Video Wall Panels 55 Inch 170 Degree Viewing Angle
Brand: YD LCD
Price: 1 USD

Narrow Bezel LCD Video Wall Panels 55 Inch 170 Degree Viewing Angle Manufactures

Brand Name : YD LCD

Model Number : WM Series

Certification : FCC,UL,ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : 1000 units per week

Delivery Time : 8-10 days

Packaging Details : Plywood Case with Foam Protect

Type : TFT

Application : Indoor

Panel Size : 55inch

spliced edges : 3.5mm/8mm/ 10mm

Viewing Angle : 170 Degree

Contrast Ratio : 3000:1

Brightness : 450cd/Sqm

Lifetime : 60000hours

Contact Now

55Inch 55" Narrow Bezel LCD Display Screen Led backlight Lcd Video Wall Wall Mounted Digital Signage

Feature:

1. Narrow design: the narrowest can reach 3.5mm (55did), and it truly achieves the seamless.
2. Interface type: VGA, DVI and HD connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation

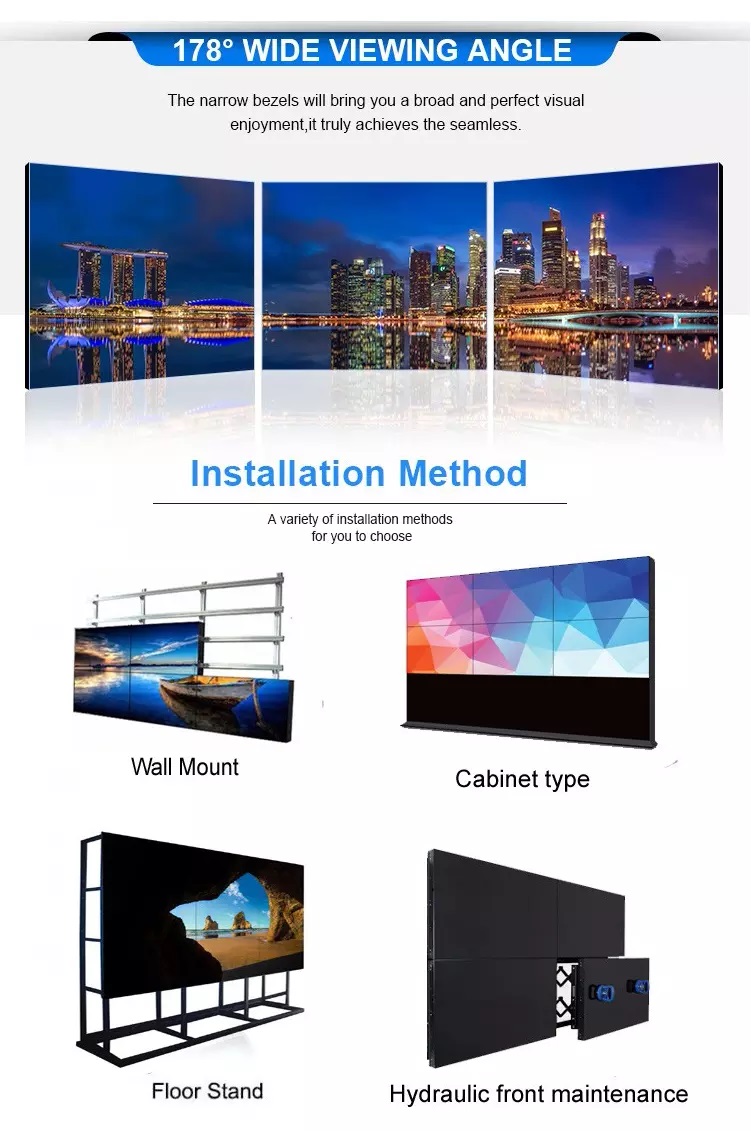

4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode

11. Excellent display

Specification:

Specification of LCD Video Wall
Size	46 inch	49 inch		55 inch
Panel Size	46" LCD module Screen	49" LCD module Screen		55" LCD module Screen
Backlight Type	LED
Display Area	1018.08(H)x572.67(v)mm	1073.8(H)*604.0(V)mm		1209.6(H)*680.4(V)mm
Aspect Ratio	16:9
Max Resolution	1920X1080
Color	8Bit,16.7M
Brightness (nits)	500cd/m2,700cd/m2	450cd/m2		500cd/m2,700cd/m2
Contrast	3500:1	4000:1		4500:1
Visual Angle (H/V)	178°/178°
Response Time	8 ms
Life Span	>60,000 hours
Bezel width (between screens)	3.5mm/5.5mm	1.8mm/3.5mm		1.7mm/1.8mm/3.5mm
Product Weight	20KG	28KG		30KG
Interfaces (option 1- without 4K input)
Model No.	HBY-PJ4609		HBY-PJ5509
Input	1DVI,1HD-MI,1VGA,2BNC (PAL/NTSC),1*RS232(RJ45)
Output	2RS232(RJ45),2BNC (PAL/NTSC)
Interfaces (option 2- With 4K input)
Model No.	HBY-DP4609		HBY-DP5511
Input	1DVI,1HDMI,1* DP (Display port),1VGA (SVGA / XGA / WXGA),2RS232(RJ45)
Output	1* DP (Display port),2*RS232(RJ45)
Power
Power Supply	AC100V~240V 50/60Hz
Maximum Power Consumption	180W	200W		220W
Standby Power Consumption	<1W
Working Environment
Working Temperature	0℃~50℃
Working Humidity	10%-90%RH

Case:

Narrow Bezel LCD Video Wall Panels 55 Inch 170 Degree Viewing Angle

Trade Terms

1.Payment: T/T , 30% deposits before production, 70% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pcs sample

Pre-sales Services for lcd video wall
•Reply your inquiry in 24 working hours.
•Experienced staffs answer all your questions in fluent English.
•Customized requirement is available, OEM&ODM are welcome.
•Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

After-sales Services for lcd video wall
Terrific after-sales service:24 hours around the clock &12 months Warranty
Life-long maintenance service for the product
