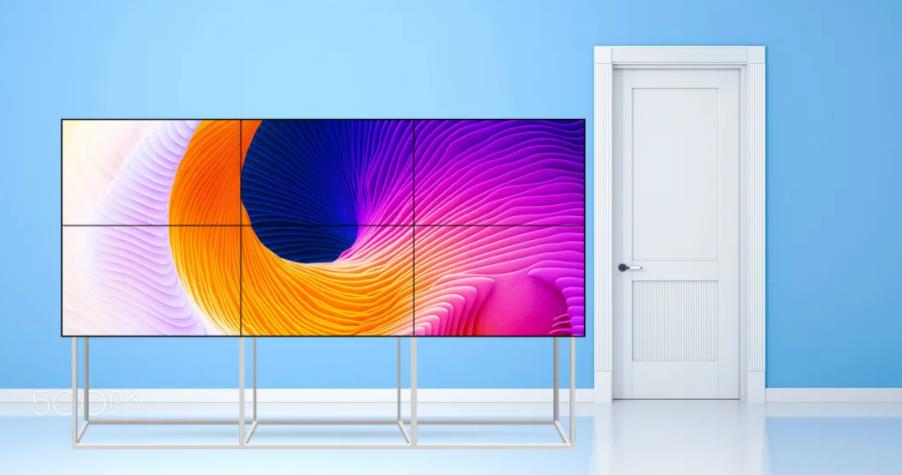

LCD Video Wall Samsung Wall Mounted LCD Screen Latest 55inch Smart Board Professional Ultra Narrow Bezel (16-LCD Video Wall.pdf)
- HD ultra slim screen.
- 178° Visual angle.
- 1.8mm/3.5mm narrow bezel.
- Pollution-free.
LCD Video Wall Features
1. A+ grade industrial panel, 46" 49" 55"high-end splicing display panel optional.
2. Support 24 hours continuously playing,365days non-stop working with high reliability.
3. Seamless narrow bezel(between panels) 1.8mm or 3.5mm.
4. High brightness :500cd/m2 or 700cd/m2 optional.
5. High resolution: 1920*1080Pixel ,3D noise reduction technology, exquisite picture quality.
6. Big view angle 178 degree (vertical and horizon),flicker free screen.
7. Supper light weight and thin DID screen, easy to install.
8. Easy installation, only fixed them together by metalbracket.
9. 100,000hours long lifespan.
10. Full hardware structure, with CPU and operation system or without is optional.
11. Easy operating, can operate the system together with thesoftware flexible, we offer free software.
12. Supports RS-232 serial ports remote control.
13. Supports multiple signal input:USB,HDMI,DVI,VGA, BNC and RS232. Output port BNC outpurt.
14. Other options splitters, controllers, and matrix switcher is available.
Wall Mounted LCD Board Parameters
| Product | 46 inch | 49 inch | 55 inch |
| Splicing Gap | 0.88/ 1.7/ 1.8/ 3.5/ 3.9/ 5.5/ 8 mm |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness | 500cd/m² | 700cd/m² | 500cd/m² |
| Ratio | 3500:01:00 | 3500:01:00 | 3500:01:00 |
| Weight | 21.5 KG | 23.6 KG | 28.5 KG |
| Lifespan | 60000 H | 60000 H | 60000 H |
| Working Temperature | 0 ~ 60 ℃ | 0 ~ 60 ℃ | 0 ~ 60 ℃ |
| Power Supply | 100 ~ 240V, 50 / 60 Hz | 100 ~ 240V, 50 / 60 Hz | 100 ~ 240V, 50 / 60 Hz |
| Rated power consumption | 210W ( MAX : 300W ) | 210W ( MAX : 300W ) | 210W ( MAX : 300W ) |
| Working hour | 7 * 24 H | 7 * 24 H | 7 * 24 H |
| Installation | wall mounted type/ cabinet type/ floor standing |
| Input interface | VGA*1, HDMI*1, DVI*1, BNC*2, IPS*1, RS232*1 |
| Optional | matrix, video processor, video distributor |
| Operation | RS232 centralized control internet remote control |
| TV wall resolution | 1920*1080, 3840*2160, point to point display |
LCD Smart Board Installation Types
Indoor LCD Display Descriptions
1. LCD DID Video Wall
High definition large screen. Limited screen, infinite horizon.
2. Ultra Bezel Perfect Vision
The most ultra width of bezel-to-bezel is just 0.3mm, which brings a stunning visual experience.
3. Flexible Installation
Support landscape or portrait display to meet the needs of different occasions.
4. Easy to Remote Control
Smart control software realize real-tine control for video wall via the connection of RS232 interface, with humanized operation system. No need support from database. It's simple, friendly usage and easy maintenance.

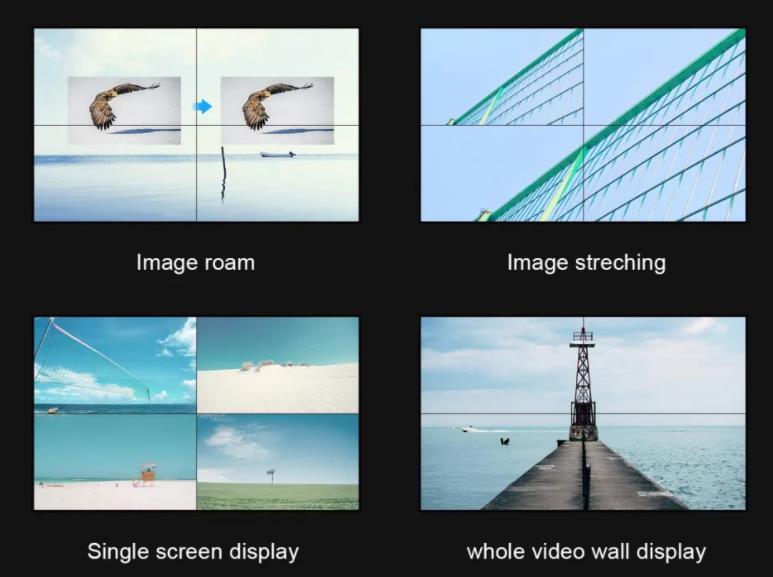

5. Split Screen As Your Wish

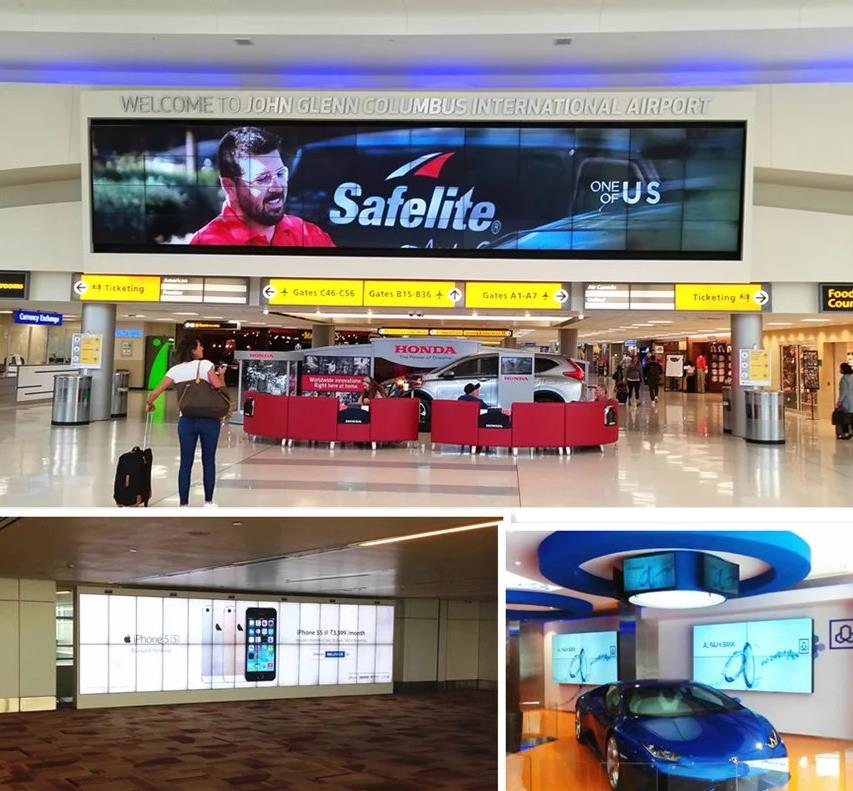

Samsung/LG 4K Screen Cases
Why Choose Manufacturer
Shenzhen Yida Technology Co., Ltd located in Shenzhen,Guangdong covering 3,000 square meters which is one of leading manufacturer specialized in LCD Video Wall, Indoor Digital Signage and Touch Standing Kiosk Screen about 6 years experience ! Our products have passed CE/ RoHS/FCC/ CCC certificates. Customers are growing all over the world such as North America,South America,South Africa,North Africa,Southeast Asia, Euro etc.
We aims to provide every customer reliable quality and excellent after-sale service. Win-win and long-term cooperation is Yida's eternal goal!
Unique Display LCD Video Wall One-Stop Solution
