LCD Splicing Panels LG Video Wall 2x2 3x3 4K Digital Monitor 3D TV Screen For Control Room

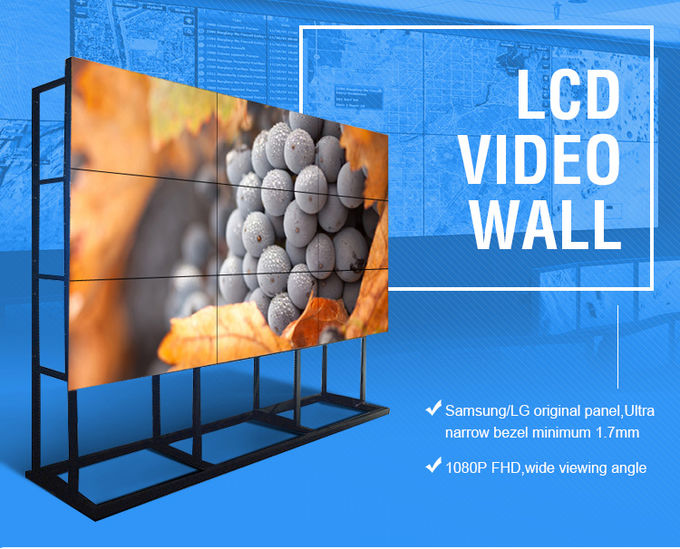

Commercial LCD Video Wall
100% Original A + Grade LG/Samsung Panel
- HD ultra slim screen.
- 178° Visual angle.
- 1.8mm/3.5mm narrow bezel.
- Pollution-free.
Splicing LCD Screens Parameters
| Panel Size | 46" | 49" | 55" | 65" |
| Panel Brand | Samsung | LG | Samsung/LG | Samsung |
| Model | HBY-PJ460P | HBY-PJ490P | HBY-PJ550P | HBY-PJ650G |
| Pixel Pitch | 0.53025*0.53025mm | 0.55926*0.55926mm | 0.63*0.63mm | 0.372*0.372mm |
| Viewing Angle | 178H/178V |
| Response Time | <6ms |
| Display Color | 8Bit,16.7M |
| Contrast Ratio | 3500:1 | 1300:1 | 4500:1 | 4000:1 |
| Connectivity | HDMI/DVI/VGA/AV/RJ45/Audio/Display Port |
| Bezel Width | 1.7mm/3.5mm | 1.8mm/3.5mm | 0.88mm/1.7mm/1.8mm/3.5mm | 3.5mm |
| Brightness | 500cd/m2&700cd/m2 | 500cd/m2&700cd/m2 | 500cd/m2&700cd/m2 | 700cd/m2 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
| Power supply | AC100-240V/50-60Hz |
| Sleep mode | 0.5W |
| Max comsumption | 180W | 200w | 220w | 350w |
| Net weight | 20kg | 25kg | 28kg | 40kg |
| Working Temp | 0-40℃ |
| Working Humidity | 10-90% |
| Operation | 7x24hrs |
| Life | >60,000hrs |
| Warranty | Standard one year without artificial damage,can be extended to 3 years,lifelong maintenance |
Commercial LCD Panel Descriptions
1. 3D Noise Reduction, Restore True Colors
DNR digitallt samples the video image and remove the noise of the image edge serrated, which accurate restore the clear and fine picture.

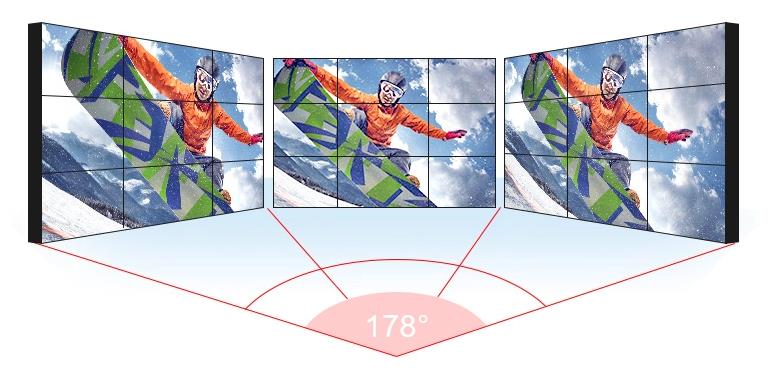

2. 178° Super Wide Angle
178° no dead angle screen, the full range of display.

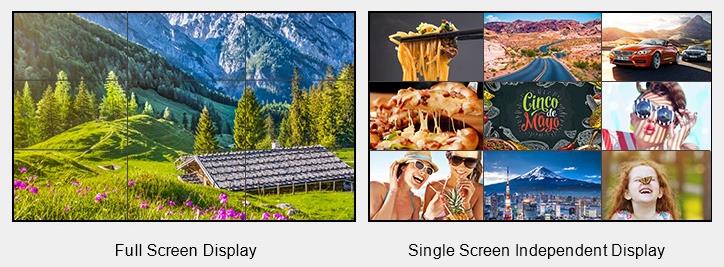

3. Intelligent Split Screen
Screen intelligent splicing, single screen arbitrary combination.

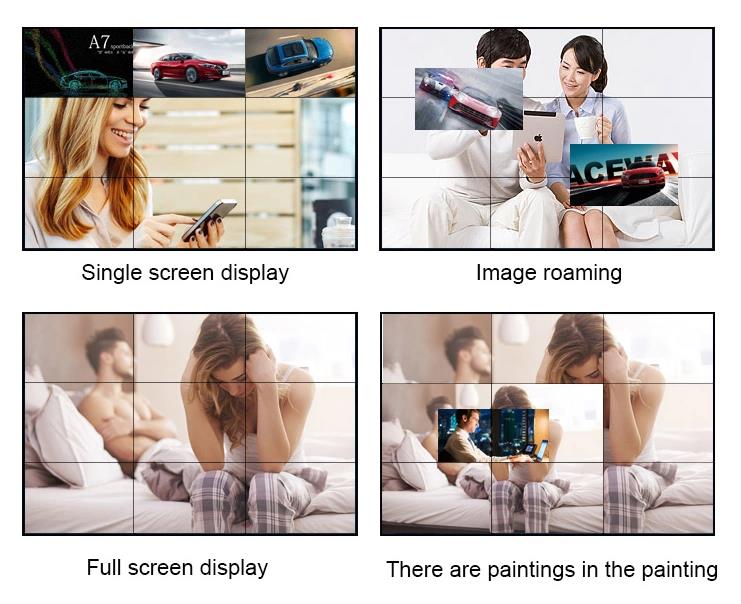

4. Rich Stitching Methods
Users can flexibly open multiple windows on the video wall, define the window size, set the display size, fill the display content arbitrarily, expand the window arbitrarily to the entire video wall, and truly realize the display requirements that are desired.

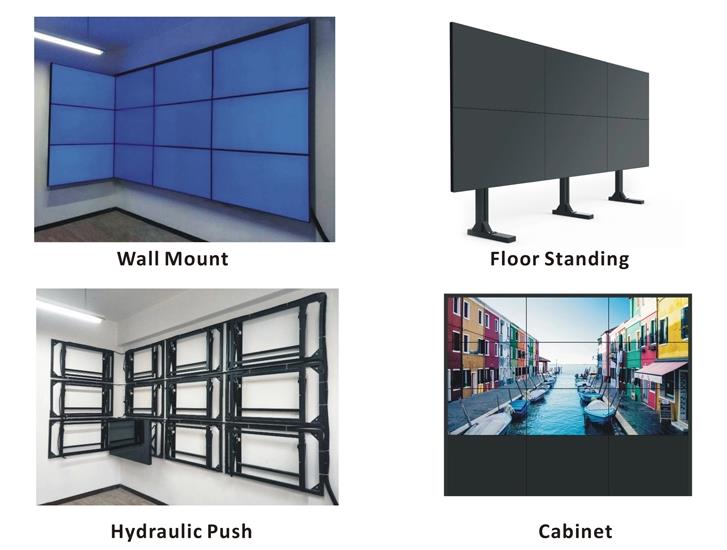

Indoor TV Display Installation Ways

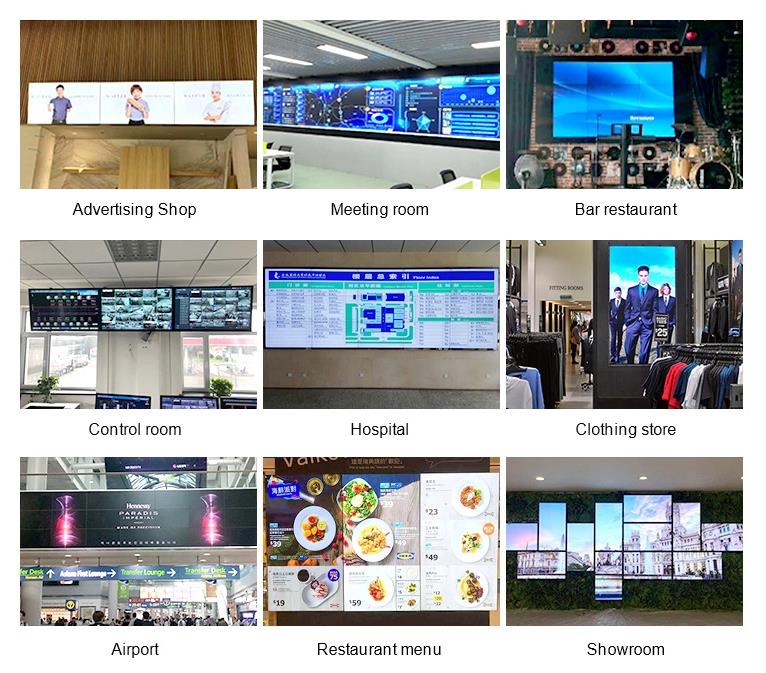

Samsung/LG 4K Monitor Application Scenarios

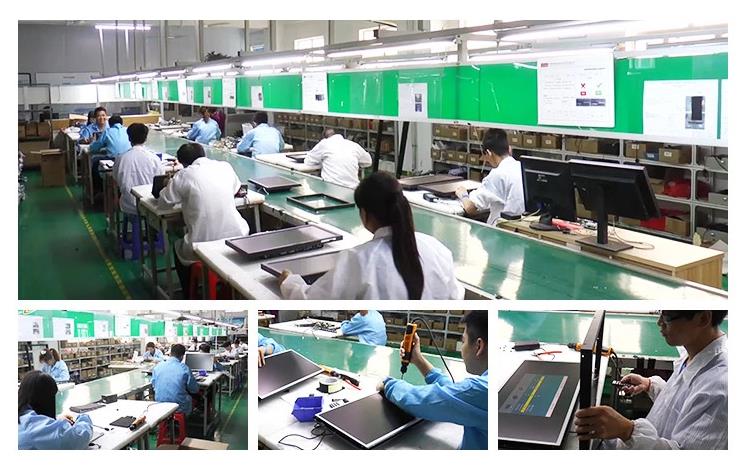

Why choose us
Shenzhen Yida Technology Co., Ltd located in Shenzhen,Guangdong covering 3,000 square meters which is one of leading manufacturer specialized in LCD Video Wall, Indoor Digital Signage and Touch Standing Kiosk Screen about 6 years experience ! Our products have passed CE/ RoHS/FCC/ CCC certificates. Customers are growing all over the world such as North America,South America,South Africa,North Africa,Southeast Asia, Euro etc.
We aims to provide every customer reliable quality and excellent after-sale service. Win-win and long-term cooperation is Yida's eternal goal!
Unique Display LCD Video Wall One-Stop Solution
|
|

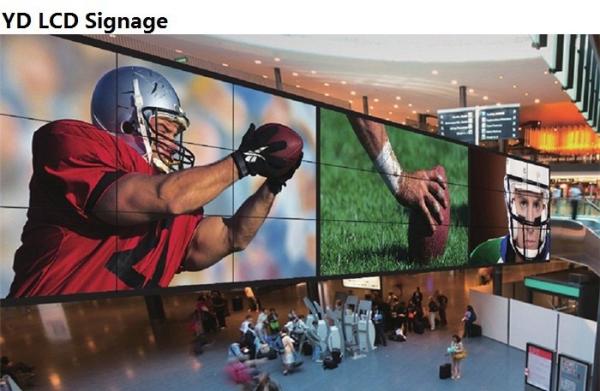

LCD splicing Panels LG Video Wall 2x2 3x3 4K Digital Monitor 3D TV Screen for control room Images
|
