Indoor Digital Signage Touch LCD Screen 10" 21.5" 55" Payment Information Machine 1080P Advertising Display Kiosk
LCD Signage Wide Operation Ways
1. Android Network Version
- Android 5.1/6.0/7.1/8.0/9.0 Operating System
- 1G/2G/4G (DDR3)
- 8G/16G/32G/64G (HAND FLASH)
- Contents Management Software (CMS)

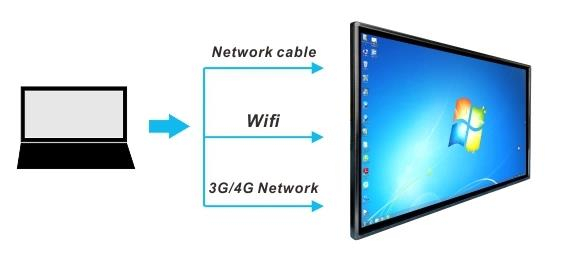

- Support WiFi/Lan, 3G/4G network
- Non-touch/Capactive-touch/IR-touch screen
- I/O Ports: HDMI, RJ45, WiFi, USB...
2. All In One PC Network Version
- Windows 7/8/10 operating system
- 2G/4G/8G (Menory)
- 64G/128G/256G (Storage)
- Contents Management Software (CMS)
- Support WiFi/Lan, 3G/4G network
- Non-touch/Capactive-touch/IR-touch screen
- I/O Ports: HDMI, RJ45, WiFi, USB, VGA...

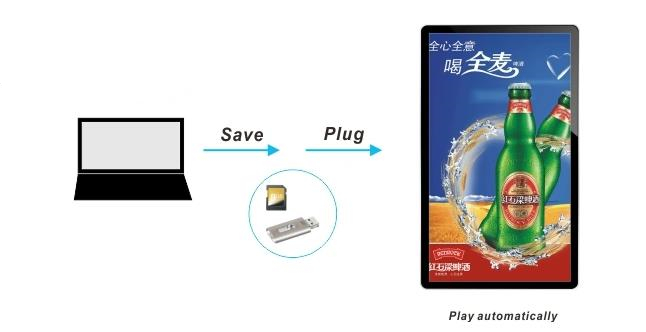

3. Standalone Version-Plug Play
- Plug USB and play automatically
- Update documents by USB
- Support connecting with media player box/PC by HD input
- Play list, timer, slideshow, split view, scrolling text, etc function
- I/O Ports: HDMI, USB, SD...
Wall-Mounted LCD Display Descriptions
1. Vertical and Horizontal Switching Intelligent Split Screen
Selection of intelligent screen spliting playing mode
2. Diversified Advertising Display, Automatic Circulation Play
Support loop, timing, plug a variety of playback
3. Supporting 10-Point Capacitance
Good for on table display, on-wall display, etc...

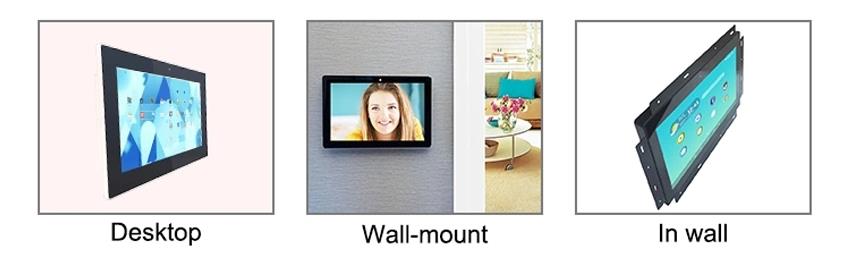

4. Optional Installation Methods
Desktop, Wall-Mounted, In Wall, etc...
5. Scheduled On/Off
Screens can be scheduled to power on/off according to your business hours
Digital Advertising Machine Applications

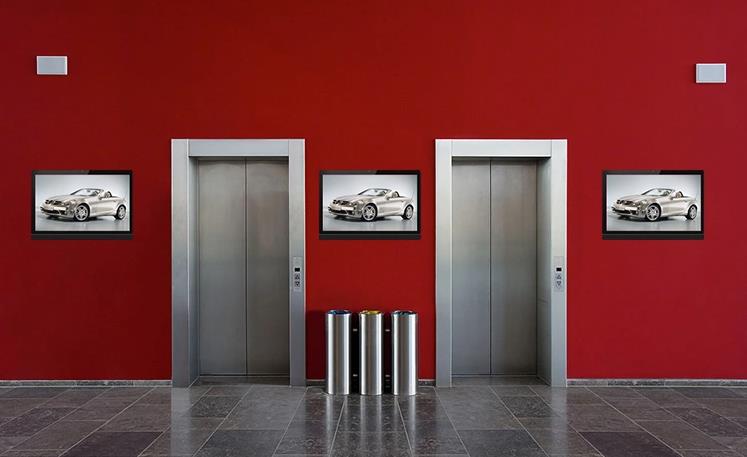

Public places, for example, shopping mall, restaurant, airport, square, commercial buidings, etc...
4K Video Wall Specifications
| Versions | 1.USB version | 2.Android | 3.Android WiFi+ | 4.Android WiFi+ | 5.Windows WiFi+ IR/Capacitive Touch |
| WiFi Version | IR Touch | Capacitive Touch |
| CPU | Mstar V56 | RK3288 | RK3288 | RK3288 | i3-3110M |
| RAM | w/o | 2GB | 2GB | 2GB | 4GB DDR3 |
| Internal memory | 8GB | 16GB | 16GB | 16GB | 64GB SSD |
| Operation system | w/o | Android 6.0 | Android 6.0 | Android 6.0 | Win10(not activated) |
| Touch screen | w/o | w/o | IR Touch | Capacitive Touch | w/o or IR or capacitive |
| Display screen: | 27" LCD FHD IPS full view angle screen, 1920*1080 FHD, LED backlight |
| View angle: 89/89(H),89/89(V); Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9 |
| WiFi | w/o | WiFi 802.11 | WiFi 802.11 | WiFi 802.11 | WiFi 802.11 |
| 3G/4G | w/o | optional | optional | optional | optional |
| Ethernet RJ45 | w/o | yes | yes | yes | yes |
| Buletooth | w/o | yes | yes | yes | yes |
| SD Card slot | yes | yes | yes | no | w/o |
| USB port | yes | yes | yes | yes | yes |
| WiFi port | w/o | yes | yes | yes | yes |
| RJ45 | w/o | yes | yes | yes | yes |
| on/off switch | yes | yes | yes | yes | yes |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| Power consumption | 48W | 60W | 60W | 60W | 78W |
| Speaker | 2*3W | 2*3W | 2*3W | 2*3W | 2*3W |
| Front Camera | w/o | w/o | w/o | w/o | w/o |
| Language | Multi-language | Multi-language | Multi-language | Multi-language | English |
| Adapter | Internal power board (AC100-240V) |
Why Choose Us
1. Experience - With over 6 years of experience in LCD screen industry.
2. Quality - All of our products have strict inspection and passed the CE, RoHS, CCC, FCC and IEC certifications to ensure the quality.
3. OEM/ODM - We have professional designers team to meet your requirements.
4. Service - We can provide perfect after-sales service in 24 hours.
Unique Display LCD Video Wall One-Stop Solution
FAQ
Q1:Is this your private model?
A: Yes.
Q2:Can I buy a sample for the quality tested? What's the MOQ of the product ?
A: welcome to buy a sample to test the quality. Usually the MOQ 10 pcs for OEM. If special requirements, the MOQ will be different.
Q3:Can you printed our logo on the product or do the customized package box for us?
A: Of course, OEM/ODM is welcome.
Q4:What's the Lead time?
A: It depends on the quantity and requirements, standard is 3-7 working days after details clearly.
Q5:What's your warranty time?
A:Warranty is 12 months.
Q6:What's the shipment methods? Can we use our own Express account number?
A: The shipping methods depends on yours. We can send it by freight collect via your account of courier.
