21.5'' Economic Wall Mounted Digital Signage Led Advertising Display Light Lcd Board
Products Features
1. 21.5 inch Full HD (1920x1080) 250cd/ m²
2. IPS wide view angle and high-contrast screen for stunning colors
3. Projected capacitive 10-point Touch Screen
4. Full metal construction
5. HDMI, DVI, VGA, YPbPr, Video, Audio Signal Input
6. OSD control on the back cover
7. DC 12V Power Input
8. Rugged industry design
9. Support embedded rack mounted / VESA wall mounted
10. USB touch interface Support Windows 7/ 8/ 10 Compliant, Android OS system
Product Materials:
1. the aluminum frame with standing process and painting color, round corner to avoid children/kids from hurt. perfect appearance offer you a flash idea for teaching presentation.
2. Color to be Black or Sliver /Black option 3. Much moderate cost will bring you more business of interactive multi touch display projects for classroom, school and conference use.
Wall Mounted Kiosk LCD Specifications:
22 inch wall touch screen rack mount lcd monitor vending machine kiosk with HDMI VGA AV inputs
| Model | PF215-9CT |
| Touch Screen | Capacitive Touch |
| Touch Interface | USB |
| Multi-Touch Support | 10 Points |
| Screen Size | 21.5" IPS |
| Display Colors | 16.7M colors (RGB 8-bit) |
| Resolution | 1920×1080 pixels |
| Dot Pitch | 248.25×248.25 um |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 3000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Interfaces
| HDMI, DVI, VGA, YPbPr, Video, Audio in, Audio out, USB for touch |
Mounting Options
| VESA 4-hole 100mm mounting / Rack Mount |
General
| Input Voltage | DC12V |
| Power Consumption | ≤12W |
| Working Temperature | -0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Unit Size | 533.40L×324.86H×46.30D (mm) |
| Unit Weight | 6.38kg |

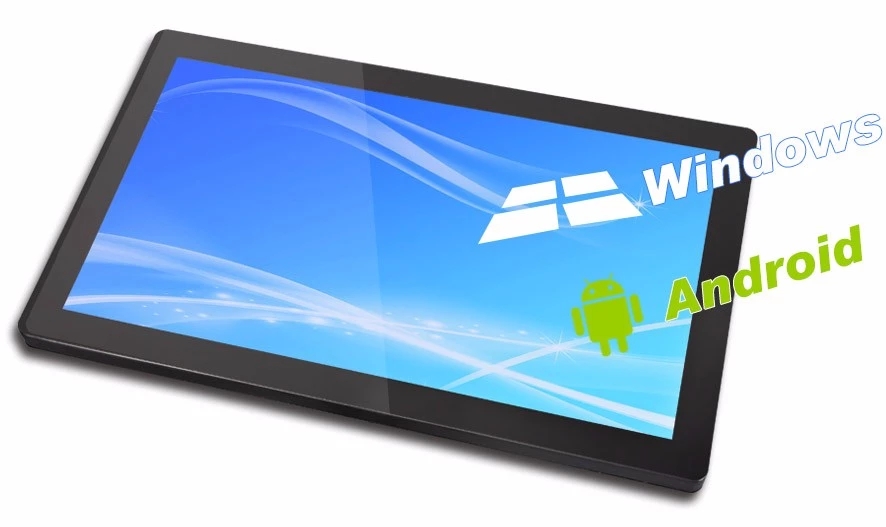

Product image
10-points Touch Screen
It can be operated by 10 people at the some time.5mm explosion protection toughened glass for the writing surface,the hands or any opaque items can achieve your operation to the touchscreen.
Application
Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,stadiums, museums, convention centers, ticket agencies, HR market, lottery centers.
Support System
Support Windows 7/ Windows 8/ Windows 10 / Android system
Packaging & Shipping
| Adkiosk | How to order the advertising playing equipment |
| 1 | TT 30% as deposit + 70% balance before shipping after examine goods |
| 2 | Paypal, West union, L/C at sight etc. are all ok |
| 3 | In general, 15-30 days after deposit, accurate production time depends on production schedule |
| 4 | Sample will be shipped by DHL, UPS, FEREX express |
| 5 | Bulk products will be shipped by express or LCL, FCL, depends on quantity |
Our Advantages
1. Outer shell is made by high-class metal material,black or silver color etc, back-fixing mode with nice appearance. Outer shell color can be customized.
2. With a protection layer of ultra thin, high light, perfectly clear tempered glass on the surface of the LCD screen to protect the screen being damaged.
3. Choosing well known famous panels. A Class 335 standard, full new and factory original packing screen.
4. Theft-protection device effectively prevent the player and CF card from being stolen in public place.
5. Password can be set to protect the contents.
6. Password can be set to lock the keyboard of the remote controller.
7. Support software updating, new function can be customized according to customer’s needs.
8. Built-in two high quality stereo speakers.
.
