1.7mm Bezel 55 inch 2x2 Lcd Video Wall with 350 Nits brightness
Specs of 55" lcd video wall
| Panel Size | With DID LCD Screen(super narrow bezel 5.3mm with LED Backlight) |
| Aspect Ratio | 16:09 |
| Max Resolution Support | 1920x1080 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 700cd/m2 |
| Contrast | 3000:01:00 |
| Visual Angle (H/V) | 178° |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| DVI | 1 |
| D-15 RGB Input(VGA) | 1 |
| YUV/YPbPR | 1(3xBNC) |
| S-(YC) | 1(2xBNC) |
| Composite Video Input/(AV) | 3(3xBNC) |
| Composite Video Output | 2(2xBNC) |
| AUDIO INPUT | 1 |
| Split Screen | Support Picture in Picture(PIP/POP/PAP) |
| Power |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 250W |
| Standby Power Consumption | <=3W |
| Temperature |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%-80% |
| Dimension | 1025.65x579.84x105mm |
55" lcd video wall description:
1, product features: multi-screen splicing, unlimited scalability, to meet the big screen experience
2, product size: 43" 46 inch, 49 inch, 55 inch
3, brand: Samsung, LG, BOE, Samsung;
4, Bezel width: 0.9MM,1.7 MM, 3.5MM
5. Support CF Card, SD card and USB Port.
6. Verity and complete software, stable and reliable
7. Time Schedule: Playlist supports download, playback and stop time for each group of network players to do scheduled functions, the player turns on/off at the same time everyday according to your setting
8. Fitted with high transparent tempered safety glass to protect the screen surface. 2mm to 8mm thickness available.
Advantages of Shenzhen Yida Technology Co., Ltd:
1. We not only high quality products, but also full package solutions, including installation design, free training on software, maintenance service, etc. For example, our panels are orginal ones from Samsung, LG, BOE, not small brand. After knowing actual installation location, we will make design for bracket which fix lcd panel on the wall;
2. 24 hours after-sales service is reachable;
3. Smallest bezel 0.9mm, 1.7mm, 3.5mm available;
4.Accessories like hydraulic support available;
5.Before delivery 72 hours aging testing is conducted;
6. Package with care(double packages: paper box plus wooden box)

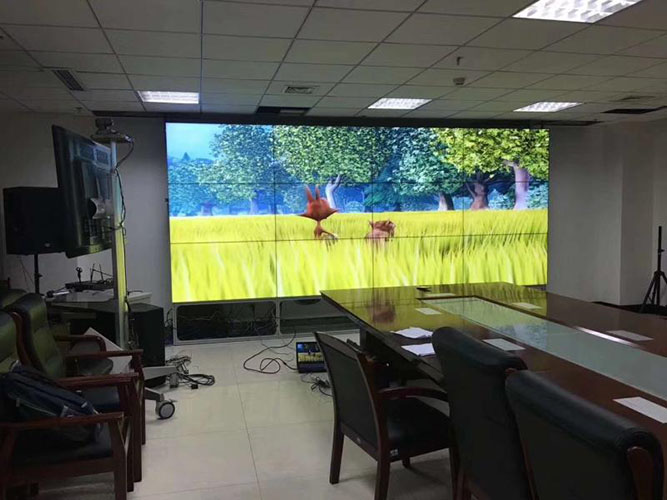

Cases of 55" lcd video wall
